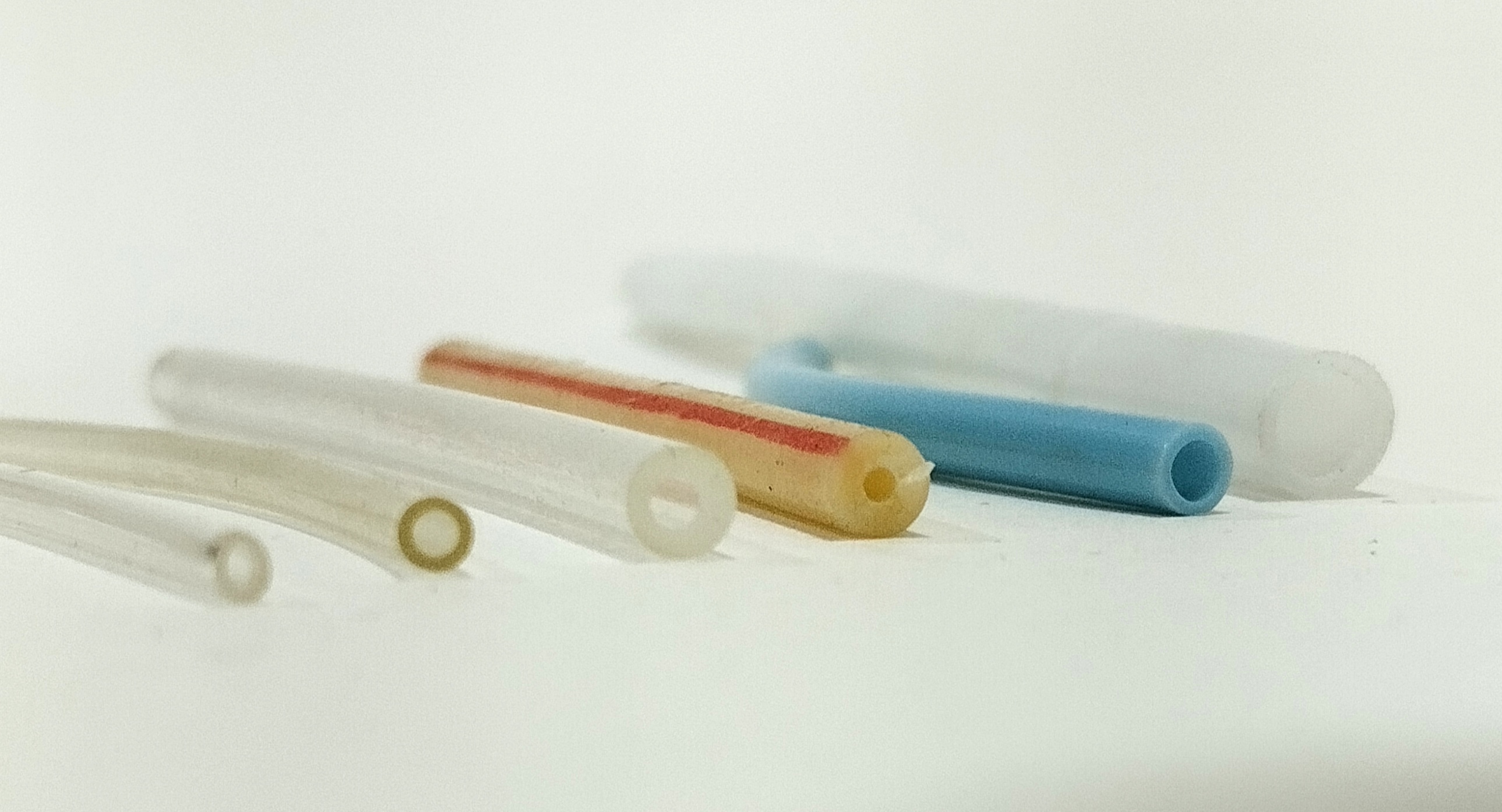

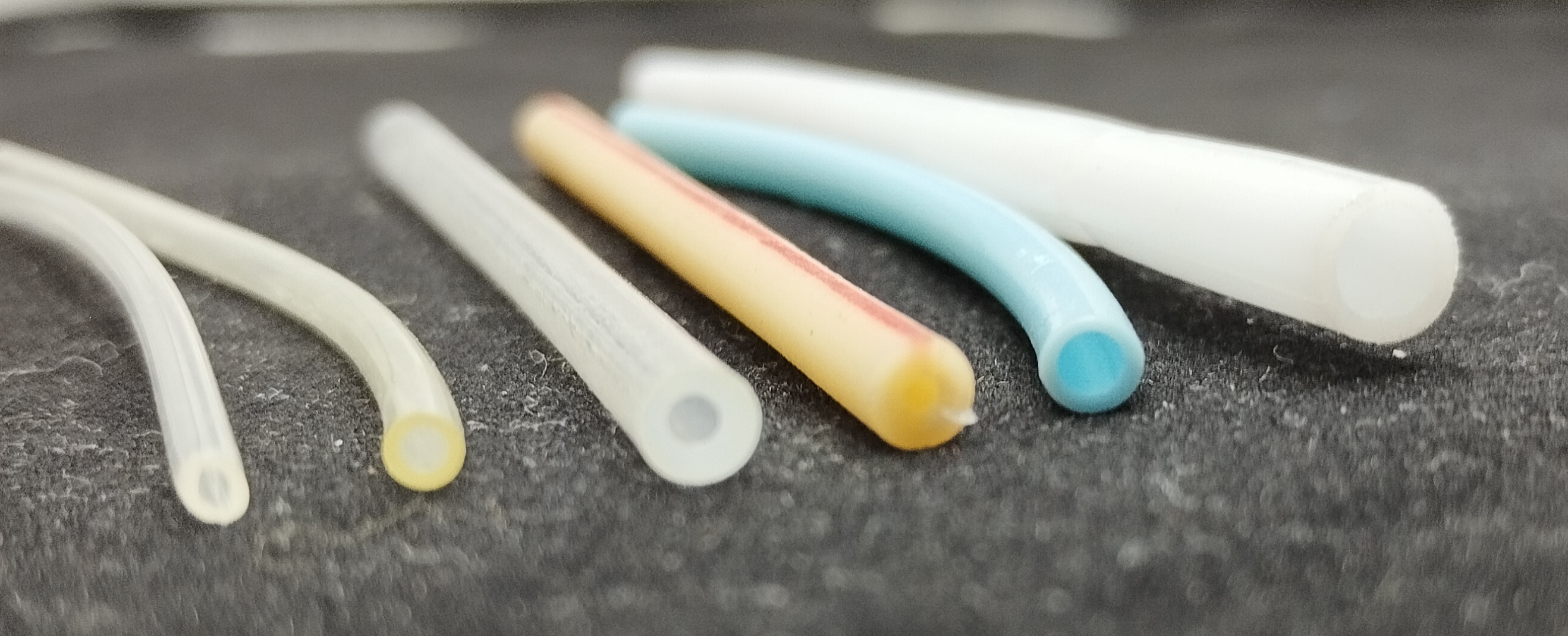

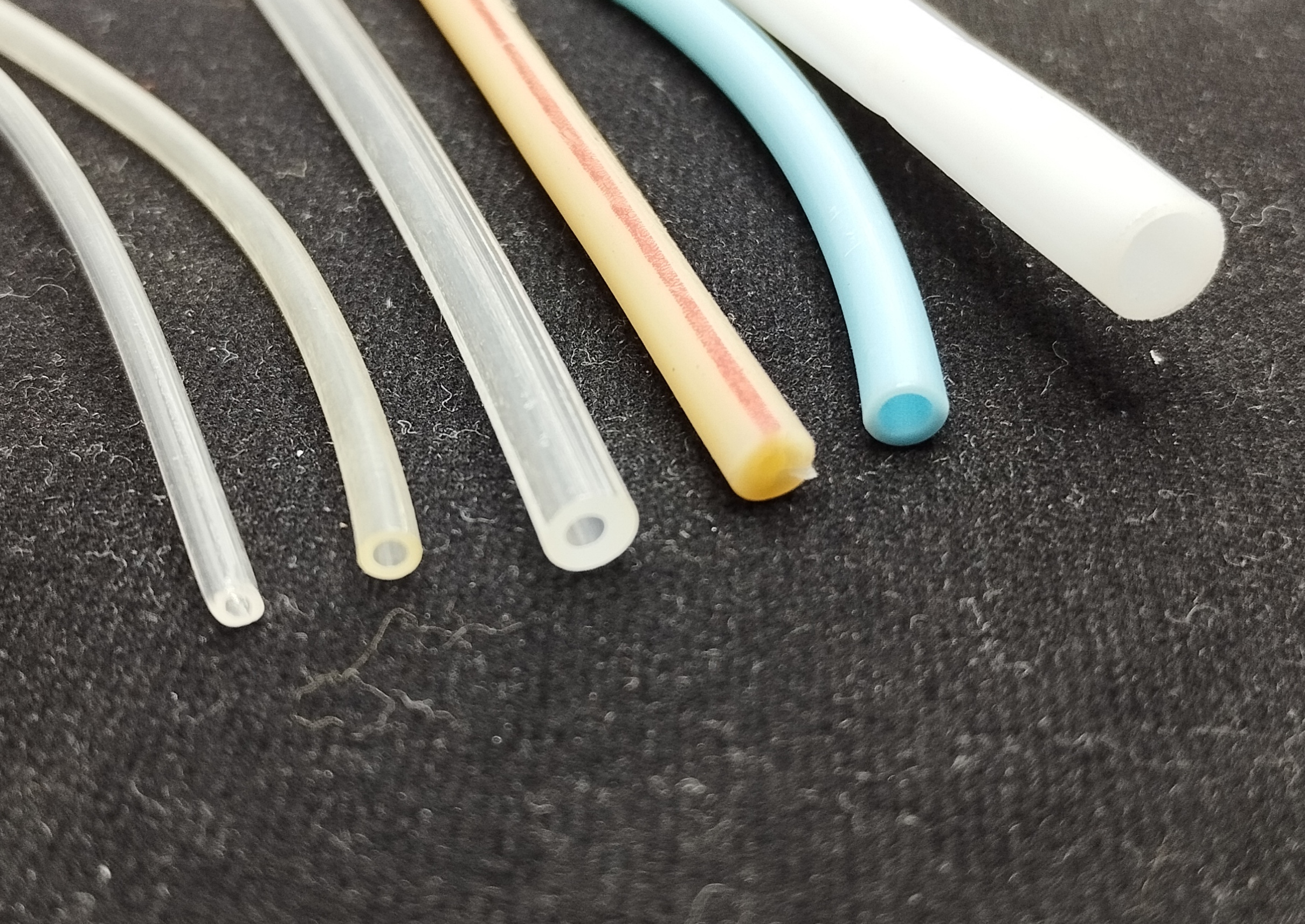

PU TUBE

PU TUBE Specification

Product Type
Other

Material
Other

Type
Flexible Pneumatic Tube

Shape
Round

Technique
Extruded

Surface Treatment
Smooth Finish

Standard
ISO 3861, RoHS Compliant

Outer Diameter
6 mm, 8 mm, 10 mm, 12 mm, 14 mm, 16 mm, 18 mm (custom sizes available)

Length
100 m roll, custom lengths available

Inside Diameter
4 mm, 6 mm, 8 mm, 10 mm, 12 mm, 14 mm, 16 mm (custom sizes available)

Wall Thickness
1 mm - 2 mm

Tensile Strength
Min. 25 MPa

Grade
Industrial Grade

Size
Standard and Custom Sizes

Color
Blue, Red, Yellow, Green, Black, Transparent, Other colors on request

Flexibility
Highly Flexible, Kink Resistant

Temperature Range
-40C to +70C

Hardness
Shore A 95 2

UV Resistance
Yes

Elongation at Break
350%

Applications
Air, Water, Pneumatic Systems, Automation, Robotics

Burst Pressure
30 bar

Working Pressure
0-10 bar (145 psi)

Packing
Coiled Roll with Protective Sealing

Chemical Resistance
Good resistance to oil, solvents, and abrasion

About PU TUBE

All sizes of medical tubes - for IV, oxygen set, nasal tube, neo natal tube, We are the manufacturer and supplier of Medical PU Medical Tube. we are engaged in providing the customers with a qualitative range of Medical PU Tube. We make the size as per your dimension

Versatile Performance for Multiple Industries

Designed for reliability, this PU Tube exhibits strong flexibility and kink resistance, making it ideal for demanding environments in automation, robotics, water transport, and air pneumatic systems. Its good chemical resistance ensures long-lasting operation even in the presence of oils and solvents.

Customizable Solutions for Your Needs

The tube is offered in standard lengths of 100 meters per coiled roll, with custom lengths and sizes upon request. Our advanced extrusion technique ensures a smooth finish, while protective sealing maintains product integrity during storage and transit. Choose from a vibrant palette of standard and custom colors to fit your application.

FAQs of PU TUBE:

Q: How can the PU Tube be used in industrial environments?

A: The PU Tube is suitable for delivering air, water, and certain chemicals in pneumatic systems, automation, and robotics, thanks to its flexibility, chemical resistance, and ability to handle pressures up to 10 bar.

Q: What is the process for ordering PU Tubes in custom sizes or colors?

A: Customers can request custom inside and outside diameters, lengths, or specific colors by contacting our sales team. We accommodate various requirements beyond the listed standard sizes and colors.

Q: When should I consider using this PU Tube over other types of tubing?

A: Choose this tube when your application requires good oil, solvent, and abrasion resistance, as well as high flexibility and kink resistance. Its particularly effective in environments exposed to varying temperatures and UV light.

Q: Where can this PU Tube be installed safely?

A: This PU Tube is designed for installation in industrial facilities, automation lines, pneumatic control systems, robotic applications, and any area requiring durable, kink-resistant tubing under varying environmental conditions.

Q: What benefits does the smooth finish and UV resistance provide?

A: The smooth finish ensures efficient fluid transfer and easy cleaning, while UV resistance protects the tubing against sunlight degradation, making it suitable for both indoor and outdoor applications.

Q: How does the tubes protective sealing and packaging ensure quality?

A: Each coil is packed with protective sealing, safeguarding the tube from contamination and physical damage during transit and storage, ensuring the tube retains its mechanical properties upon delivery.
