TermiPore Kit for 1000 sq ft area - BASIC

TermiPore Kit for 1000 sq ft area - BASIC Specification

Product Type
Anti-Termite Piping Kit

Material
HDPE (High Density Polyethylene)

Type
BASIC

Shape
Round Pipe with Perforations

Technique
Extruded

Surface Treatment
Smooth Finish

Standard
IS 4984 compliant

Outer Diameter
20 mm

Length
100 meters (kit total length)

Inside Diameter
16 mm

Wall Thickness
2 mm

Tensile Strength
>22 MPa

Grade
PE 63

Size
Suitable for 1000 sq ft area

Color
Blue

About TermiPore Kit for 1000 sq ft area - BASIC

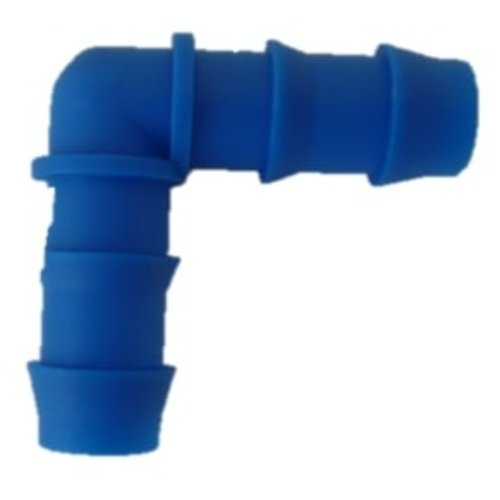

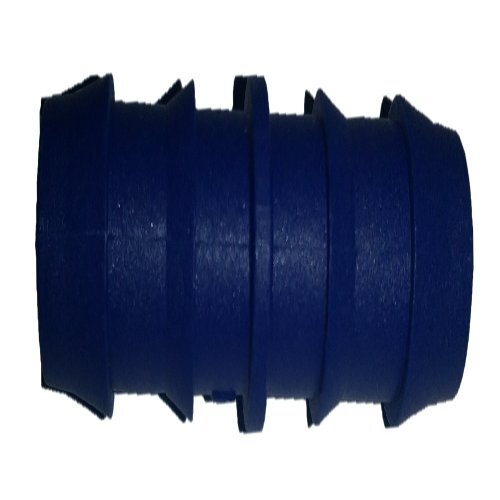

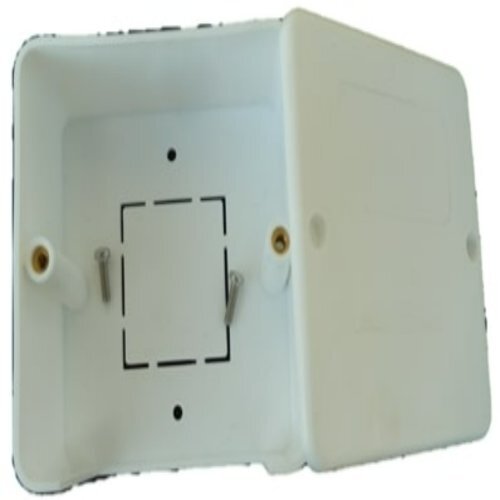

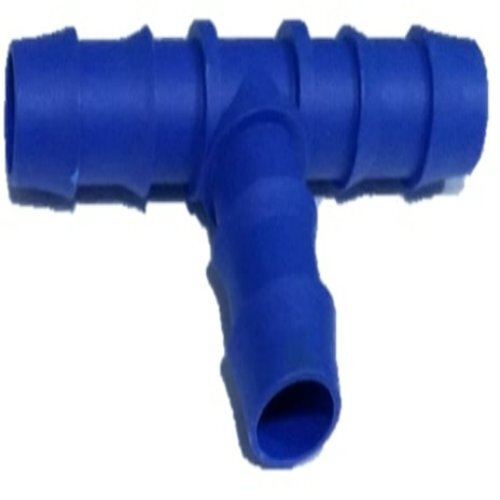

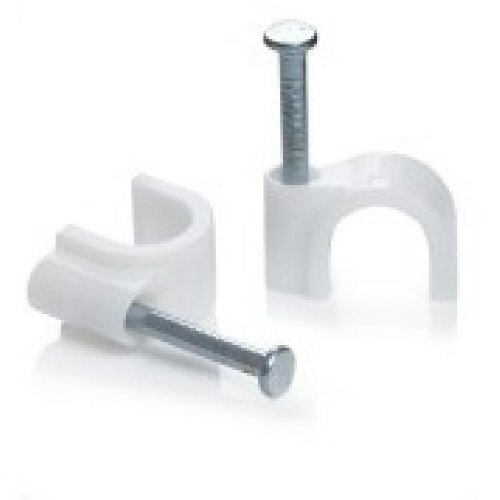

TermiPore BASIC Kit with 17.5 mm TermiPore pipe has all items that are required in approximately 1000 sq ft area considering installation only at the borders / walls. 125 mtr Termipore Pipe size 12.5 mm x 17.5 mm with green line marking; 10 Mtrs 1/2" flexible inlet pipe without holes; 16 mm Jointers - 25 nos; 16 mm Elbow - 50 nos; 16 mm Tee - 50 nos; 16 mm End Plug - 20 nos; Plastic fixing hook - 25 nos; Junction box - 6 nos; made of Polypropylene Cable tie - 100 nos; 3/4" plastic nail hook - 100 nos;

Uniform Anti-Termite Protection

TermiPore Kit employs a densely perforated, extruded HDPE tube system that distributes termiticide uniformly, targeting termite-prone zones beneath your structure. The precision-placed 2 mm perforations allow for an even flow, drastically improving efficacy and coverage compared to manual drills or basic pipes.

Easy Installation and Versatility

Engineered for flexibility, the system fits both perimeter and grid sub-floor layouts, making it ideal for a range of construction types. The kit comes complete with end caps, elbows, joiners, and inlet connectors, simplifying and speeding up the installation process for contractors and homeowners alike.

Long-Term Durability and Compliance

Built from IS 4984 compliant, high density polyethylene, the TermiPore Kit guarantees lasting performance-even under continuous chemical exposure, moderate temperatures, and site pressure. Its superior tensile strength and smooth finish help prevent blockages and endure real-world construction demands.

FAQ's of TermiPore Kit for 1000 sq ft area - BASIC:

Q: How does the TermiPore Kit ensure effective anti-termite treatment for a 1000 sq ft area?

A: The Kit uses a perforated HDPE pipe system with 80-100 holes per meter (each 2 mm in diameter) to evenly distribute termiticide throughout the covered area. This uniform distribution targets termite zones beneath the structure, enhancing overall efficacy compared to spot treatments.

Q: What is included in the TermiPore Kit for installation?

A: The kit contains a 100-meter HDPE pipe (inside diameter: 16 mm), end caps, elbows, joiners, and inlet connectors. These components enable easy assembly and allow the system to be laid out in either a perimeter or grid pattern, according to site requirements.

Q: When should the TermiPore Kit be installed for maximum effectiveness?

A: For best results, install the kit during the pre-construction phase, before pouring the flooring slab. However, it is also suitable for post-construction deployment, especially in renovation or repair scenarios where anti-termite protection is required.

Q: Where is the TermiPore Kit placed during installation?

A: The TermiPore system is installed sub-floor, below the foundation slab, either around the perimeter or in a grid pattern across the area to maximize chemical reach and barrier continuity.

Q: What materials and standards ensure the TermiPore Kit's durability?

A: The pipes are made from HDPE (High Density Polyethylene) conforming to IS 4984 and PE 63 grade with a tensile strength greater than 22 MPa, ensuring long-term resistance to wear, chemicals, and environmental factors. The kit is also highly resistant to common termiticides and operates reliably at temperatures up to 60C.

Q: How is the TermiPore Kit maintained after installation?

A: Routine inspections are recommended to check connectors and end caps for integrity. The smooth inner surface and robust construction minimize clogging, but periodic pressure flushing with water or approved solutions can maintain peak performance over time.

Q: What are the major benefits of using the TermiPore Kit over conventional methods?

A: Unlike manual drilling or non-uniform application methods, the TermiPore Kit offers consistent chemical dispersion for reliable barriers, easier and quicker installation, high chemical resistance, and long-term durability-significantly reducing the risk of termite infestation beneath structures.
